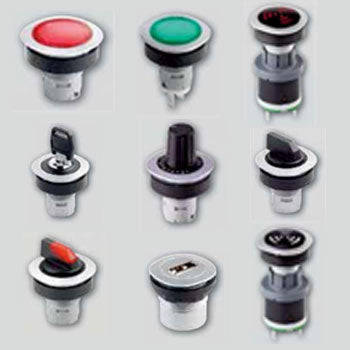

RONTRON Q-JUWEL Series

Flush-mounted control units and pilot lights for 22.5mm mounting diameter. They are flat enough (1.4mm) and are a good alternative for membrane keyboards. Front bezels are flat and rounded square shape. 22mm mount with rounded square shaped bezel.

Dimension (mm)

Round flush metal, sqared edged bezel
Panel Cutout: Ø22.3mm
Front Dimension: 28x28mm
Front Bezel Height: 2mm
Travel Distance: 3mm

Download Catalog

Suitable Contact Blocks

  • DMF SERIES

    Transmitter module for wireless push button
    Energy input E-Pulse
    External Antenna required

    Learn More

  • B-SERIES

    3mm travel
    Lamp socket T5.5K (telephone slide base) or W2x4.6 (wedge base)
    Connection = Fast-on terminals 2.8x0.8mm or PCB mount terminals or screw connections

    Learn More

  • CP SERIES

    3mm travel
    Lamp socket T5.5K (telephone slide base)
    Connection = PCB mount terminals

    Learn More
